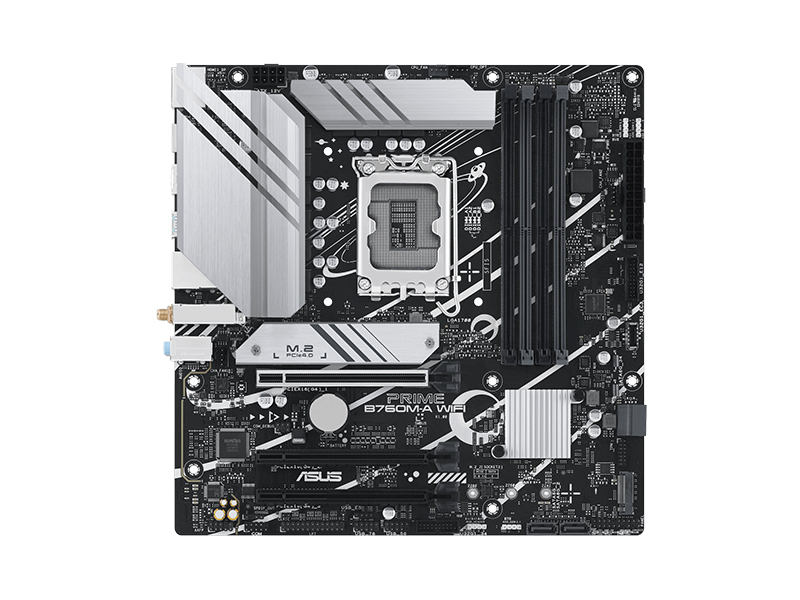

Mainboard PRIME B760M-A WIFI D4/ LGA1700 for 14th, 13th & 12th Gen/ 4x DIMM DDR4 max 128/ 2x M.2 & 4x SATA 6GB/s/ mATX
Price:
$ 140.00
Sharing
Product link copied — share this deal!
Product Details
| CPU Socket Suport | : | LGA1700 for Intel® Core™ 14th, 13th 12th Gen. |
| Chipset | : | Intel® B760 Chipset |
| Memory | : | 4 x DIMM, Max. 128GB, DDR4 5333(OC) |
| Graphics | : | 1 x Display, 2 x HDMI® |
| Expansion Slots | : | Intel® CoreTM Processors (14th & 13th & 12th Gen) |
| : | 1 x PCIe 4.0 x16 slot | |
| : | Intel® B760 Chipset | |
| : | 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| : | 1 x PCIe 4.0 x16 slot (supports x1 mode) | |
| Storage | : | 2 x M.2 slots |
| : | 4x SATA 6Gb/s | |
| Ethernet | : | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | : | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2 |
| USB | : | Rear USB (Total 6 ports) |
| : | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
| : | 4 x USB 2.0 ports (4 x Type-A) | |
| : | Front USB (Total 10 ports) | |
| : | 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| : | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| : | 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| : | 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Audio | : | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | : | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
| : | 4 x USB 2.0 ports (4 x Type-A) | |
| : | 1 x DisplayPort | |
| : | 2 x HDMI® ports | |
| : | 1 x Wi-Fi Module | |
| : | 1 x Realtek 2.5Gb Ethernet port | |
| : | 3 x Audio jacks | |
| : | 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | : | Fan and Cooling related |
| : | 1 x 4-pin CPU Fan header | |
| : | 1 x 4-pin CPU OPT Fan header | |
| : | 2 x 4-pin Chassis Fan headers | |
| : | Power related | |
| : | 1 x 24-pin Main Power connector | |
| : | 1 x 8-pin +12V Power connector | |
| : | Storage related | |
| : | 2 x M.2 slots (Key M) | |
| : | 4 x SATA 6Gb/s ports | |
| : | USB | |
| : | 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| : | 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| : | 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| : | 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| : | Miscellaneous | |
| : | 3 x Addressable Gen 2 headers | |
| : | 1 x Aura RGB header | |
| : | 1 x Clear CMOS header | |
| : | 1 x COM Port header | |
| : | 1 x Front Panel Audio header (AAFP) | |
| : | 1 x LPT header | |
| : | 1 x S/PDIF Out header | |
| : | 1 x SPI TPM header (14-1pin) | |
| : | 1 x 20-3 pin System Panel header with Chassis intrude function | |
| Special Features | : | ASUS 5X PROTECTION III |
| : | - DIGI+ VRM | |
| : | - LANGuard | |
| : | - Overvoltage Protection | |
| : | - SafeSlot Core+ | |
| : | - Stainless-Steel Back I/O | |
| : | ASUS Q-Design | |
| : | - Q-DIMM | |
| : | - Q-LED Core | |
| : | - Q-Slot | |
| : | ASUS Thermal Solution | |
| : | - M.2 heatsink | |
| : | - VRM heatsink design | |
| : | ASUS EZ DIY | |
| : | - ProCool | |
| : | Aura Sync | |
| : | - Aura RGB header | |
| : | - Addressable Gen 2 headers | |
| BIOS | : | 128 Mb Flash ROM, UEFI AMI BIOS |
| Dimension | : | 24.4 cm x 24.4 cm |
| Form Factor | : | mATX |
| Code | : |
