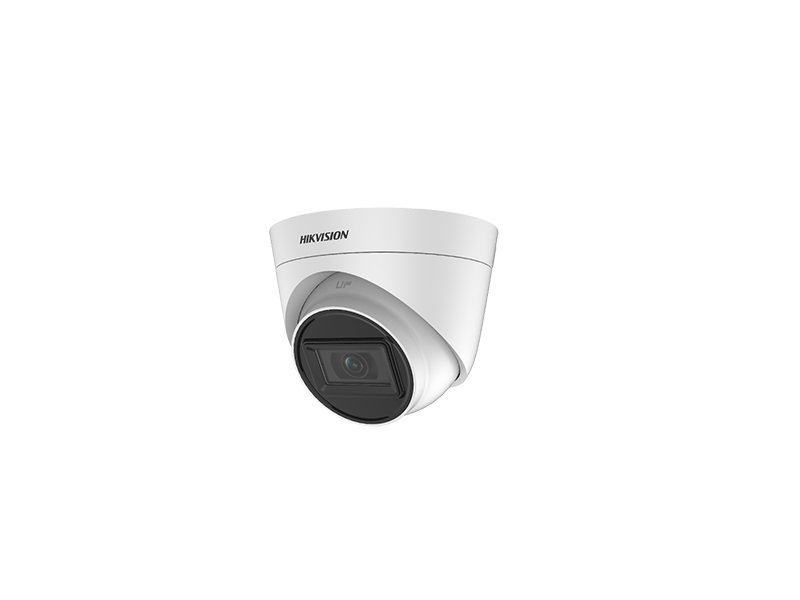

DS-2CE78H0T-IT3FS
Price:
$ 49.00
Sharing
Product link copied — share this deal!
Product Details
| Camera | : | |
| Image Sensor | : | 5 MP CMOS |
| Max. Resolution | : | 2560 (H) × 1944 (V) |
| Min. Illumination | : | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | : | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | : | ICR |
| Angle Adjustment | : | Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360° |
| Signal System | : | PAL/NTSC |
| Lens | : | |
| Lens Type | : | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | : | 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5° |
| Lens Mount | : | M12 |
| Image | : | |
| Image Parameters Switch | : | STD/HIGH-SAT |
| Image Settings | : | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | : | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
| Day/Night Mode | : | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | : | Digital WDR |
| White Balance | : | ATW/MANUAL |
| Interface | : | |
| Video Output | : | Switchable TVI/AHD/CVI/CVBS |
| General | : | |
| Power | : | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera |
| Material | : | Enclosure: Plastic Main Body: Metal |
| Dimension | : | Φ 109.82 mm × 91.03 mm |
| Weight | : | Approx. 300 g |
| Communication | : | HIKVISION-C |
| Approval | : | |
| Protection | : | IP67 |
| Code | : | PCC-288 |
