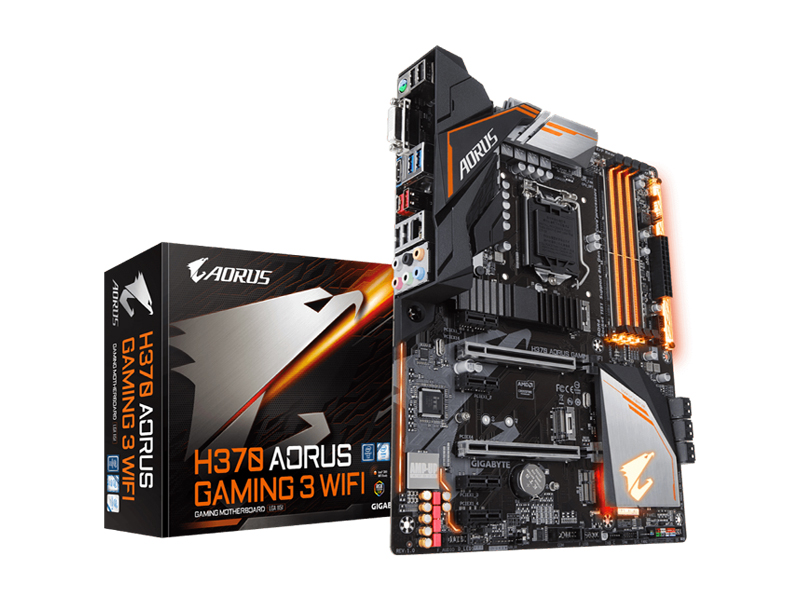

CPU Socket Suport |
: |
LGA1151 |
|
Chipset |
: |
Intel® H370 |
|
Memory |
: |
4 x DDR4 DIMM up to 64 GB |
|
Graphics |
: |
1 x HDMI , 1 x DVI-D port |
|
Expansion Slots |
: |
1 x PCI Express x16 slot, running at x16 (PCIEX16) |
|
|
: |
1. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|
|
: |
4 x PCI Express x1 slots |
|
|
: |
1. 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI) |
|
Storage |
: |
2 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) |
|
|
: |
1. 6 x SATA 6Gb/s connectors |
|
Ethernet |
: |
1. Intel® GbE LAN chip (10/100/1000 Mbit) |
|
Wireless & Bluetooth |
: |
|
|
USB |
: |
1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header |
|
|
: |
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support |
|
|
: |
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel |
|
|
: |
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
|
: |
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
Audio |
: |
1. High Definition Audio |
|
Internal I/ Connetior |
: |
1. 1 x 24-pin ATX main power connector |
|
|
: |
2. 1 x 8-pin ATX 12V power connector |
|
|
: |
3. 1 x CPU fan header |
|
|
: |
4. 1 x water cooling CPU fan header |
|
|
: |
5. 2 x system fan headers |
|
|
: |
6. 1 x system fan/water cooling pump header |
|
|
: |
7. 2 x digital LED strip headers |
|
|
: |
8. 2 x digital LED strip power select jumpers |
|
|
: |
9. 2 x RGB (RGBW) LED strip headers |
|
|
: |
10. 6 x SATA 6Gb/s connectors |
|
|
: |
11. 2 x M.2 Socket 3 connectors |
|
|
: |
15. 1 x USB 3.1 Gen 1 header |
|
|
: |
16. 1 x USB 2.0/1.1 header |
|
|
: |
17. 1 x serial port header |
|
|
: |
18. 1 x S/PDIF Out header |
|
|
: |
19. 1 x Thunderbolt™ add-in card connector |
|
|
: |
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
|
: |
21. 1 x Clear CMOS jumper |
|
Back Panel Connectors |
: |
1. 1 x PS/2 keyboard/mouse port |
|
|
: |
2. 4 x USB 2.0/1.1 ports |
|
|
: |
3. 1 x DVI-D port |
|
|
: |
4. 1 x HDMI port |
|
|
: |
5. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support |
|
|
: |
6. 1 x USB 3.1 Gen 2 Type-A port (red) |
|
|
: |
7. 2 x USB 3.1 Gen 1 ports |
|
|
: |
8. 1 x RJ-45 port |
|
|
: |
9. 6 x audio jacks |
|
Form Factor |
: |
ATX Form Factor; 30.5cm x 24.4cm |
|
Code |
: |
MAGB-13 |
