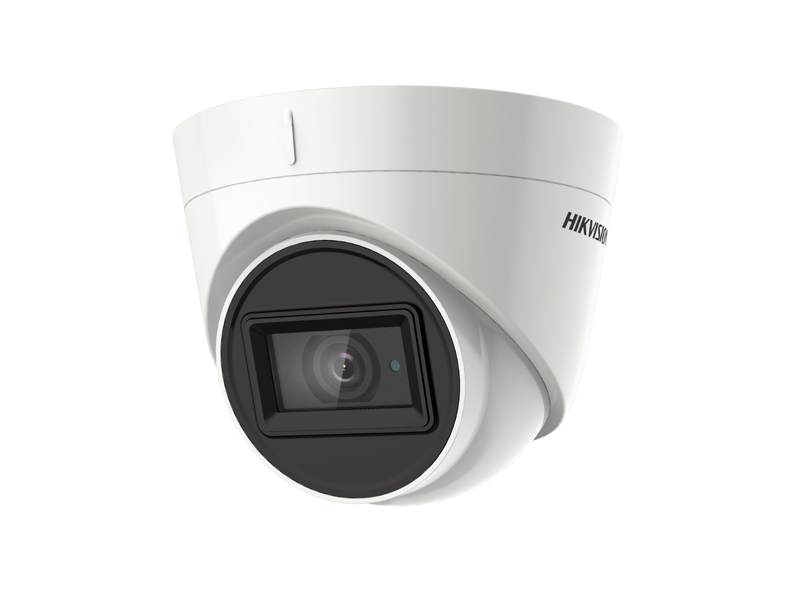

DS-2CE78H8T-IT3F
Price:
$ 70.00
Sharing
Product link copied — share this deal!
Product Details
| Camera | : | |
| Image Sensor | : | 5 MP CMOS |
| Max. Resolution | : | 2560 (H) × 1944 (V) |
| Min. Illumination | : | Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | : | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | : | IR Cut Filter |
| Angle Adjustment | : | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | : | PAL/NTSC |
| Lens | : | |
| Lens Type | : | 2.8 mm, 3.6 mm, 6 mm, 8 mm, and 12 mm fixed focal lens |
| Focal Length & FOV | : | 2.8 mm, horizontal FOV: 98° 3.6 mm, horizontal FOV: 78° 6 mm, horizontal FOV: 48° 8 mm, horizontal FOV: 37° 12 mm, horizontal FOV: 23° |
| Lens Mount | : | M12 |
| Illuminator | : | |
| Supplement Light Type | : | IR |
| Supplement Light Range | : | Up to 60 m |
| Smart Supplement Light | : | Yes |
| Image | : | |
| Image Parameters Switch | : | No |
| Image Settings | : | Brightness;Sharpness;Mirror;AGC |
| Frame Rate | : | TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC |
| Day/Night Mode | : | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | : | ≥130 dB |
| Image Enhancement | : | BLC |
| Privacy Mask | : | 4 programmable privacy masks |
| Noise Reduction | : | 3D DNR |
| White Balance | : | Auto/Manual |
| Interface | : | |
| Video Output | : | 1 HD analog output;Switchable TVI/AHD/CVI/CVBS |
| Alarm | : | No |
| Built-in Microphone | : | No |
| Event | : | |
| Motion Detection | : | 4 programmable motion areas |
| General | : | |
| Power | : | 12 VDC ± 25%, max. 5.8 W *You are recommended to use one power adapter to supply the power for one camera. |
| Material | : | Main body: Metal, Enclosure: Plastic |
| Dimension | : | Φ 109.82 mm × 91.03 mm |
| Weight | : | Approx. 310 g |
| Communication | : | HIKVISION-C |
| Protection | : | IP67 |
| Code | : | PCC-301 |
